FreeRTOS for Renesas RX71M (RXv2)
Supporting GCC, IAR and Renesas compilers
[RTOS Ports]
Introduction
This page documents the RTOS demo applications that targets the
Renesas RX71M
microcontroller, which has an RXv2 core.
Three projects are provided:
-
An e2studio project
that uses the GCC compiler.
-
An e2studio project
that uses the Renesas compiler.
-
An IAR Embedded Workbench
project that uses the IAR compiler.
All three projects include build options that allow the creation of a simple blinky demo
or a comprehensive demo, and target the
RX71M RSK
(Renesas Start Kit) evaluation board. The comprehensive demo includes a command
line interface implemented with
FreeRTOS+CLI.
IMPORTANT! Notes on using the RX71M RTOS demo projects
Please read all the following points before using this RTOS port.
- Source Code Organisation
- The Demo Application
- RTOS Configuration and Usage Details
See also the FAQ My application does
not run, what could be wrong?
Source Code Organisation
The FreeRTOS download contains the source code for all the RTOS ports, so
contains lots more files than are required by the RX71M projects.
See the Source Code Organization
section of this website for more information.
The IAR project is called RTOSDemo.eww, and is located in the
/FreeRTOS/Demo/RX700_RX71M_RSK_GCC_e2studio_IAR directory.
The e2studio projects have the usual Eclipse project name .project.
The project that uses the GCC compiler is also located in the
/FreeRTOS/Demo/RX700_RX71M_RSK_GCC_e2studio_IAR directory, and the
project that uses the Renesas compiler is located in the
/FreeRTOS/Demo/RX700_RX71M_RSK_Renesas_e2studio directory. These are
the directories that must be selected when importing the
projects into the e2studio Eclipse workspace.
Building and Running the Renesas RX71M RTOS Demo
The RTOS demo projects can be configured to build either
a simple blinky project, or a comprehensive test and demo project.
The constant
mainCREATE_SIMPLE_BLINKY_DEMO_ONLY, which is defined at the top of main.c, is used
to switch between the two. The comprehensive project is created when
mainCREATE_SIMPLE_BLINKY_DEMO_ONLY is set to 0. The simple demo is created when
mainCREATE_SIMPLE_BLINKY_DEMO_ONLY is set to 1.
The demos use an LED and the UART to USB converter built onto the RSK development board, so no hardware
set up is required.
Note: Some of the C source files built by the e2studio projects are included
in the project using a
project relative path,
so the project will fail to build if the FreeRTOS directory structure has been
altered from that provided in the official .zip file download.
-
Start the e2studio Eclipse IDE, and either create a new or select an existing
workspace when prompted.
-
Select "Import" from the IDE's "File" menu. The dialogue box shown below
will appear. Select "General->Existing Project into Workspace", as shown
below.
The dialogue box that appears when "Import" is first clicked
-
In the next dialogue box, select /FreeRTOS/Demo/RX700_RX71M_RSK_GCC_e2studio_IAR
as the root directory if you are using the GCC compiler, or
/FreeRTOS/Demo/RX700_RX71M_RSK_Renesas_e2studio if you are using
the Renesas compiler.
-
Make sure the RTOSDemo project is checked in the "Projects" area,
and that the Copy Projects Into
Workspace check box is not checked, before clicking
the Finish button (see the image below for the correct check box states).
Make sure RTOSDemo is checked, and "Copy projects into workspace" is not checked
-
Open main.c and locate the mainCREATE_SIMPLE_BLINKY_DEMO_ONLY definition,
which is near the top of the file. Set mainCREATE_SIMPLE_BLINKY_DEMO_ONLY to 1 to
build the simply blinky style (starter) project. Set
mainCREATE_SIMPLE_BLINKY_DEMO_ONLY to 0 to build the comprehensive test
and demo application.
-
Select "Build All" from the e2studio Eclipse "Project" menu to build
the demo project, and wait for the build to complete.
-
Ensure the E1 debug adapter (which comes with the RSK starter kit) is
connected between the RX71M RSK board and the computer running e2studio.
If you configure the launch configurations as per the images below then there is
no need for a separate power supply.
-

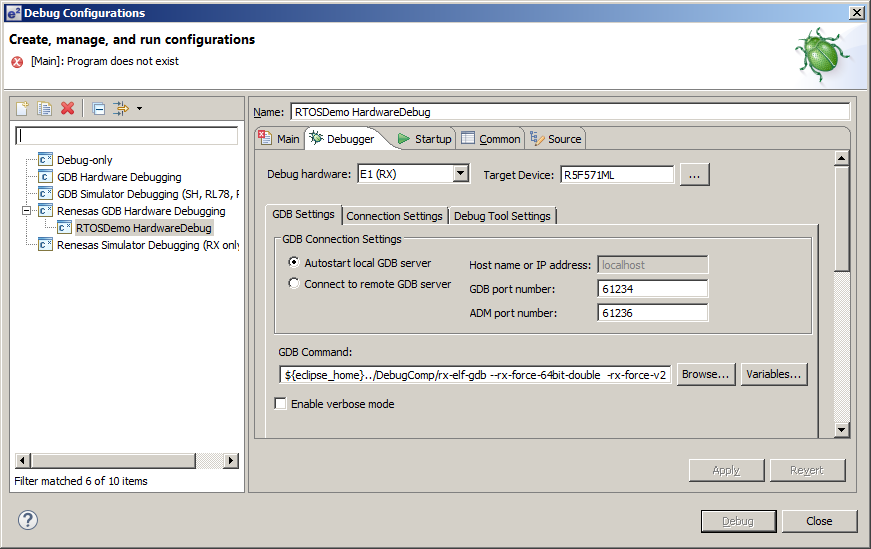

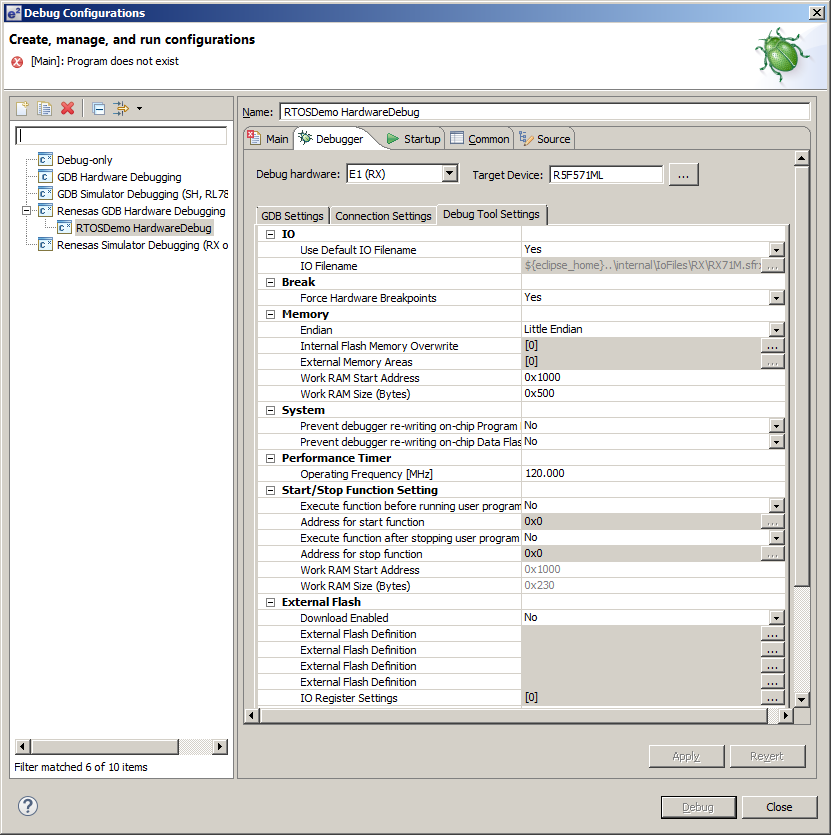

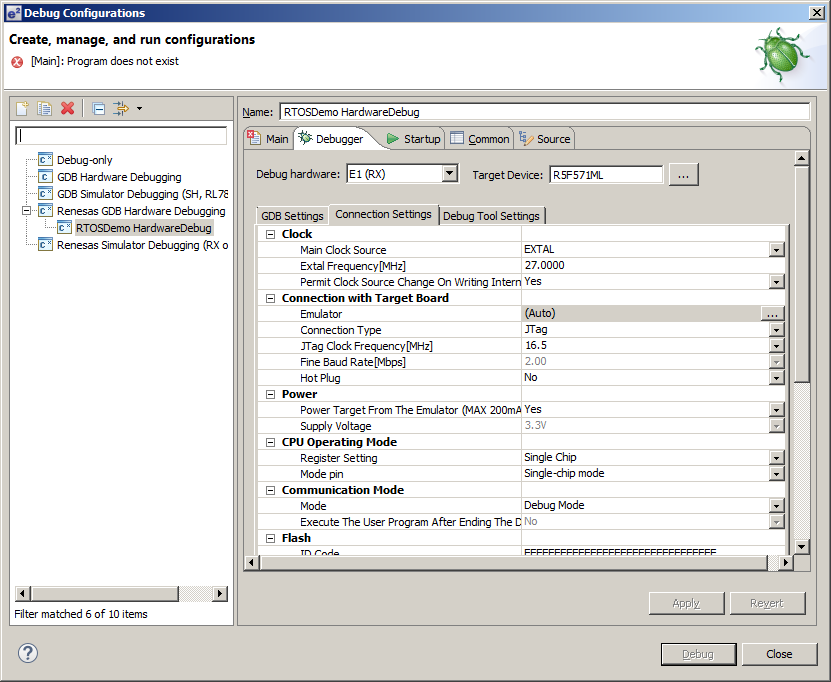

Select "Debug Configurations" from the Eclipse "Run"
menu to configure a launch configuration that can be used to program the
microcontroller flash memory, and start a debug session. Configure
the debug launch configuration as shown in the images below.
Demo Application Functionality
The simply blinky example
The blinky example is built when mainCREATE_SIMPLE_BLINKY_DEMO_ONLY is set
to 1 in main.c. When this is done, main() calls main_blinky():
-
The main_blinky() Function:
main_blinky() creates an RTOS queue, a queue send task, and a queue receive
task, then starts the scheduler.
-
The Queue Send Task:
The queue send task is implemented by the prvQueueSendTask() function in main_blinky.c.
prvQueueSendTask() sends the value 100 to the RTOS queue every 200 milliseconds.
-
The Queue Receive Task:
The queue receive task is implemented by the prvQueueReceiveTask() function
in main_blinky.c.
prvQueueReceiveTask() blocks to wait for data to arrive on the RTOS queue.
Each time the value 100 is received from the queue it toggles LED 0.
As data is sent to the queue every 200ms, the LED will toggle every
200ms.
The comprehensive test and demo application
The comprehensive example is created when mainCREATE_SIMPLE_BLINKY_DEMO_ONLY is set
to 0 in main.c. When this is done, main() calls main_full():
-
The main_full() Function:
main_full() creates a set of standard demo tasks, some application specific
test tasks, a command line interface (CLI) task, a pseudo randomiser task, and
then starts the scheduler.
The pseudo randomiser task is just used to ensure some variation is
added to the sequence in which the test tasks execute, and in so doing,
improve the test coverage.
-
The command line interface (CLI)
The CLI is implemented using the FreeRTOS+CLI
extensible command line interface, and uses SCI1 at 19200 baud
for its input and output. As always with FreeRTOS+CLI, type "help" to
see a list of registered commands.
-
The "Reg Test" Tasks:
The reg test tasks test the context switching mechanism by filling each
MCU register with a known value, then continuously checking that each
register maintains its expected value for the lifetime of the task.
-
The "Check" Task:
The "Check" task monitors the status of all the other tasks in
the system, looking for a task either stalling, or reporting an error.
It toggles LED 0 each time it iterates around its implementing loop.
If the LED is toggling every three seconds then the check task has not
detected any stalled tasks, or detected any errors. If the LED
is toggling every 200ms then at least one error has been found.
RX71M RTOS port specific configuration
Configuration items specific to this demo are contained in /FreeRTOS/Demo/RX700_RX71M_RSK_GCC_e2studio_IAR/src/FreeRTOSConfig.h
for the IAR and GCC projects, and /FreeRTOS/Demo/RX700_RX71M_RSK_Renesas_e2studio/src/FreeRTOSConfig.h for the Renesas compiler
project. The
constants defined in these files can be edited to suit your application. In particular -
- configTICK_RATE_HZ
This sets the frequency of the RTOS tick. The supplied value of 1KHz is useful for
testing the RTOS kernel functionality but is faster than most applications need. Lowering this frequency will improve efficiency.
- configKERNEL_INTERRUPT_PRIORITY
This defines the interrupt priority used by the RTOS kernel for the RTOS tick
timer and software interrupts. This should always be set to
the lowest interrupt priority, which is 1 for the RX71M. See
the configuration pages for more information.
- configMAX_SYSCALL_INTERRUPT_PRIORITY
This defines the maximum interrupt priority from which RTOS API functions
can be called. Interrupts at or below this priority can call FreeRTOS API
functions provided that the API function ends in 'FromISR'.
Interrupts above this priority cannot call any FreeRTOS API functions but
will not be effected by anything the RTOS kernel is doing. This makes them
suitable for functionality that requires very high temporal accuracy (motor
control for example).
The RXv2 port layer #defines 'BaseType_t' to 'long'.
Writing interrupt service routines (ISRs)
Interrupts can be written using the standard compiler syntax. Examples for all
three supported compilers are provided below.
Often an ISR wants to cause a context switch so the task that is returned to when
the ISR completes is different to the task that the ISR originally interrupted. This would
be the case if the ISR caused a task to unblock, and the unblocked task had a
priority above that of the task that was already in the Running state. This
can be achieved by calling portYIELD_FROM_ISR(), which takes a single parameter.
The parameter must be 0 if a context switch is not required, or non-zero if
a context switch is required. portYIELD_FROM_ISR() is used in the examples
below.
/* Pragma used to install the interrupt. The 'enable' used in the pragma
tells the compiler to enable interrupts before executing the user code. */
#pragma interrupt ( Excep_PERIB_INTB128( vect = 128, enable ) )
/* Function definition. */
void Excep_PERIB_INTB128( void )
{
long lHigherPriorityTaskWoken;
/* Interrupts are already enabled here. See comment above. */
/* vTaskNotifyGiveFromISR() is an interrupt safe FreeRTOS function. It is
assumed the task handle has already been stored. If notifying the task
unblocks the task, and the task that is unblocked has a priority above the
priority of the currently executing task, then the lHigherPriorityTaskWoken
parameter will get set to pdTRUE inside the vTaskNotifyGiveFromISR()
function. */
vTaskNotifyGiveFromISR( xTask, &lHigherPriorityTaskWoken );
portYIELD_FROM_ISR( lHigherPriorityTaskWoken );
}
An example interrupt service routine using the Renesas compiler syntax
|
/* Pragma used to install the interrupt. */
#pragma vector = VECT_TMR0_CMIA0
/* Function definition. */
__interrupt void vT0_1_InterruptHandler( void )
{
long lHigherPriorityTaskWoken;
/* Unlike when using the Renesas compiler, interrupts must be explicitly
re-enabled inside the interrupt service routine. */
__enable_interrupt();
/* vTaskNotifyGiveFromISR() is an interrupt safe FreeRTOS function. It is
assumed the task handle has already been stored. If notifying the task
unblocks the task, and the task that is unblocked has a priority above the
priority of the currently executing task, then the lHigherPriorityTaskWoken
parameter will get set to pdTRUE inside the vTaskNotifyGiveFromISR()
function. */
vTaskNotifyGiveFromISR( xTask, &lHigherPriorityTaskWoken );
portYIELD_FROM_ISR( lHigherPriorityTaskWoken );
}
An example interrupt service routine using the IAR compiler syntax
|
/* The function prototype uses the interrupt attribute. The then function
must be manually inserted into the interrupt vector table. */
static void vT0_1_InterruptHandler( void ) __attribute__((interrupt));
/* Function definition. */
void Excep_PERIB_INTB128( void )
{
long lHigherPriorityTaskWoken;
/* Unlike when using the Renesas compiler, interrupts must be explicitly
re-enabled inside the interrupt service routine. */
__asm volatile( "SETPSW I" );
/* vTaskNotifyGiveFromISR() is an interrupt safe FreeRTOS function. It is
assumed the task handle has already been stored. If notifying the task
unblocks the task, and the task that is unblocked has a priority above the
priority of the currently executing task, then the lHigherPriorityTaskWoken
parameter will get set to pdTRUE inside the vTaskNotifyGiveFromISR()
function. */
vTaskNotifyGiveFromISR( xTask, &lHigherPriorityTaskWoken );
portYIELD_FROM_ISR( lHigherPriorityTaskWoken );
}
An example interrupt service routine using the GCC compiler syntax
|
Generating the RTOS tick interrupt
FreeRTOS requires exclusive use of a timer that is capable of generating the tick interrupt - but
it is up to the application writer to define which timer is used. To do this,
the application must define a function called vApplicationSetupTimerInterrupt() that
configures a timer to generate an interrupt at the frequency specified by the
configTICK_RATE_HZ
setting in FreeRTOSConfig.h, then install the RTOS tick interrupt
handler in the corresponding location within the interrupt vector table.
When using the IAR and Renesas compilers the RTOS tick handler is installed
simply by defining configTICK_VECTOR to the appropriate vector number in
FreeRTOSConfig.h.
When using the GCC compiler the RTOS tick handler and RTOS software interrupt handler
must be manually added to the appropriate vectors in the vector table definition.
The RTOS tick handler is called vPortTickISR(), and the RTOS software interrupt
handler is called vPortSoftwareInterruptISR(). See the source file vector_table.c
in the GCC project for an example.
It is suggested that a compare match timer is used to generate the tick interrupt, and an example
implementation of vApplicationSetupTimerInterrupt() that uses compare match timer 0 is
included in main.c within each RX700 demo application.
Resources used by FreeRTOS
FreeRTOS requires exclusive use of the software interrupt.
Compiler options
As with all the ports, it is essential that the correct compiler options are used. The best way to ensure this is to base your
application on the provided demo application files.
Memory allocation
Source/Portable/MemMang/heap_4.c is included in the RX71M demo application project to provide the memory
allocation required by the RTOS kernel.
Please refer to the Memory Management section of the API documentation for
full information.
Miscellaneous
Note that vPortEndScheduler() has not been implemented.
Copyright (C) Amazon Web Services, Inc. or its affiliates. All rights reserved.
|
