Xilinx Microblaze Port
on a Virtex-4 FPGA
[RTOS Ports]

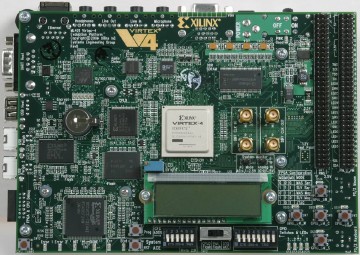

Image reproduced with permission of Xilinx Inc

The port and demo documented on this page are now deprecated. A link to the latest demo can be found here.

The Microblaze port was developed using the PowerPC & MicroBlaze Virtex-4 FX12 Edition Development Kit. This is a very comprehensive kit that includes:

  • An ML403 development board (instructions are provided should you wish to use an alternative development board).
  • All the required hardware development tools.
  • All the required software development tools (EDK and ISE).
  • A JTAG interface.
  • All the required cables.
Note: Check the license conditions of each development tool individually, some are open source, some are for evaluation only, others are licensed annually.

The Microblaze port is intended to be as generic and widely applicable as possible. Therefore, even though the ML403 is a comprehensive development platform (including Ethernet, USB, audio, etc.), the FreeRTOS kernel places as little reliance as possible on hardware outside of the core FPGA component. The demo application that accompanies the port is configured to execute entirely from BRAM and only makes use of a basic UART component.

Note: Xilinx have continued to work on both the Microblaze core and their own tool chain since the port presented on this page was originally created. Tyrel Newton has been good enough to update the port to use V14.4 of the Xilinx tool chain, and post the resultant modifications to the FreeRTOS Interactive section of this site. Thanks Tyrel!

As downloaded this demo application does not demonstrate the use of co-routines. See the co-routine documentation page for information on how co-routine functionality can be quickly added to this demonstration.


IMPORTANT! Notes on using the Microblaze soft processor core RTOS port

Please read all the following points before using this RTOS port.

  1. Source Code Organization
  2. The Demo Application
  3. Configuration and Usage Details
See also the FAQ My application does not run, what could be wrong?

Source Code Organization

The FreeRTOS download contains the source code for all the FreeRTOS ports so contains many more files than used by this demo. See the Source Code Organization section for a description of the downloaded files and information on creating a new project.

The Platform Studio/GCC demo application project for the Microblaze FreeRTOS port is called system.xmp and can be located in the FreeRTOS/Demo/Microblaze directory.

The directory FreeRTOS/Demo/Microblaze/Serial contains a sample interrupt driven serial port driver for the basic UART peripheral.


The Demo Application

The FreeRTOS source code download includes a fully preemptive multitasking demo application for the Microblaze GCC RTOS port.

The demo application creates 23 of the standard demo application tasks, a 'Check' task, two Microblaze specific test tasks and the idle task - 27 tasks in total. The demo application section of this site provides more information on the function of the standard demo tasks.


Demo application hardware setup

All the ML403 jumpers can remain in their default positions.

The demo application includes the ComTest tasks - where one task transmits RS232 characters to another. For correct operation of this real time task a loopback connector must be fitted to the RS232 port of the ML403 prototyping board (pins 2 and 3 must be connected together on the 9Way connector).

The demo application uses the LEDs built into the prototyping board so no other hardware setup is required.


Functionality

When executing correctly the demo application will behave as follows:
  • LEDs 1, 2 and 3 are under control of the 'flash' tasks. Each will flash at a constant frequency, with LED 1 being the slowest and LED 3 being the fastest.

  • The LED above SW4 will flash each time a character is transmitted on the serial port.

  • The LED above SW5 will flash each time a character is received and validated on the serial port.

  • Not all the tasks update an LED so have no visible indication that they are operating correctly. Therefore a 'Check' task is created whose job it is to ensure that no errors have been detected in any of the other tasks.

    LED 0 is under control of the 'Check' task. Every three seconds the 'Check' task examines all the tasks in the system to ensure they are executing without error. It then toggles LED 0. If LED 0 is toggling every three seconds then no errors have ever been detected. The toggle rate increasing to 500ms indicates that the 'Check' task has discovered at least one error. This mechanism can be tested by removing the loopback connector from the serial port (described above), and in doing so deliberately generating an error.


Building and executing the demo application

As the Microblaze is a soft processor core the initial build will generate both the FPGA and software images. This can be a lengthy process! Providing the hardware configuration is not altered, compilation and download cycles subsequent to the initial build can be completed in a matter of seconds.

The Xilinx Platform Studio project is aware of the dependencies between each component of the build. If you attempt to download a bitstream it will first check that all components of the bitstream are up to date, and if not ensure they are built in the correct order. The easiest way of performing a complete build is therefore to simply click the 'Download' speed button within the Platform Studio IDE:

  1. Connect the ML403 development board to your host computer using the JTAG adaptor. If using the parallel port version then ensure to connect both the parallel connector and the PS/2 connector to your host.

  2. Power up the ML403.

  3. Open the Demo/Microblaze/system.xmp file within the Platform Studio IDE.

  4. Click the Download speed button .

  5. If this is the first build - go and do something else for a while as the build will take some time.

The demo application will automatically start executing when the build and download procedure has completed.

The project is executed from the BRAM so will be lost if power is removed.


Using the debugger

Once the FPGA has been programmed, software builds can be modified and executed using the Insight debugger:
  1. Follow steps 1 to 4 as above in order to ready the development environment.

  2. Start the XMD interface by clicking the XMD speed button . This is necessary for the host debugger to communicate with the development board.

  3. Build the software source files using the Build All User Applications speed button .

  4. Start the Insight debugger using the Software Debugger speed button .

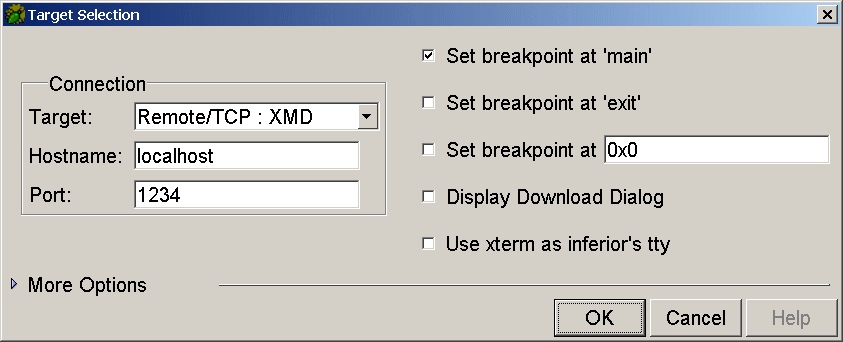

  5. From within the Insight IDE, select Target Settings from the File menu and ensure the configuration is as per the following image:


    Insight target settings

  6. Again from within the Insight IDE, select the Run speed button .

  7. Insight will connect to the target, download the executable, then execute to and break at the start of main(). From then on Insight can be used to step through the code and inspect system resources as normal.

Configuration and Usage Details

Hardware Components

With the aim of providing the minimum necessary, the build configuration includes only:
  • A basic Microblaze configuration with no cache or floating point support, and no external memory interfaces.

  • A debug module.

  • The LED outputs required by the demo application.

  • A basic UART (included in order to test the interrupt mechanisms).

  • A single interrupt controller.

  • A timer that is used to generate the RTOS tick.

  • The necessary bus interfaces.


Notes on the GCC project

  1. The definition XILINX_EDK_DIR within Demo/MicroBlaze/System_incl.make may require updating manually to ensure it contains the correct path to your xilinx/EDK directory.

  2. I have found the tools will fail to build if the project is located in a directory path that contains a space (' ').


RTOS port specific configuration

Configuration items specific to this port are contained in Source/Demo/MicroBlaze/FreeRTOSConfig.h. The constants defined in this file can be edited to suit your application. In particular - the definition configTICK_RATE_HZ is used to set the frequency of the RTOS tick. The supplied value of 1000Hz is useful for testing the RTOS kernel functionality but is faster than most applications require. Lowering this value will improve efficiency.

Each port #defines 'BaseType_t' to equal the most efficient data type for that processor. This port defines BaseType_t to be of type long.

Note that vPortEndScheduler() has not been implemented.


Interrupt service routines

The FreeRTOS kernel installs its own interrupt handler when the RTOS scheduler is started. This uses the same data structures and indirection mechanism as the peripheral library and requires no special consideration.

An interrupt service routine that does not cause a context switch has no special requirements and can be written as a normal function.

Often you will require an interrupt service routine to cause a context switch. For example a serial port character being received may wake a high priority task that was blocked waiting for the character. If the ISR interrupted a lower priority task then it should return immediately to the woken task. Placing a call to the macro portYIELD_FROM_ISR() at the end of an interrupt function will ensure that the highest priority task that is able to run is the task executed immediately upon leaving the interrupt function. See the function vSerialISR() within Demo/MicroBlaze/serial/serial.c for an example of how portYIELD_FROM_ISR() can be used in conjunction with xQueueSendFromISR() and xQueueReceiveFromISR().


Switching between the pre-emptive and co-operative RTOS kernels

Set the definition configUSE_PREEMPTION within Demo/MicroBlaze/FreeRTOSConfig.h to 1 to use pre-emption or 0 to use co-operative.


Compiler options

As with all the ports, it is essential that the correct compiler options are used. The best way to ensure this is to base your application on the provided demo application files.


Memory allocation

Source/Portable/MemMang/heap_2.c is included in the Microblaze demo application makefile to provide the memory allocation required by the RTOS kernel. Please refer to the Memory Management section of the API documentation for full information.


Serial port driver

It should also be noted that the serial drivers are written to test some of the real time kernel features - and they are not intended to represent an optimized solution.

NOTE: The baud rate used by the basic UART is fixed once the hardware image has been generated. The baud rate parameter passed to the serial port initialisation routine has no effect. As downloaded, the baud rate is set to 9600.
