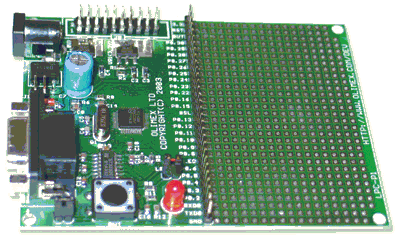

There are currently four FreeRTOS ports for the Philips LPC2000 ARM7 based embedded microcontroller - this page relates only to the GCC port. Both ARM and THUMB modes are supported. The port was developed on a LPC-P2106 low cost prototyping board (instructions are provided should you wish to use an alternative development board) and uses the open source GNUARM development tools (compiler and debugger). The FreeRTOS download includes a comprehensive ARM7 RTOS port demo application that creates and executes 32 real time tasks. There are also two separate embedded Ethernet TCP/IP web server example applications. IMPORTANT! Notes on using the LPC2106 RTOS portPlease read all the following points before using this RTOS port.See also the FAQ My application does not run, what could be wrong? Source Code OrganizationThe FreeRTOS download contains the source code for all the FreeRTOS ports. See the Source Code Organization section for a description of the downloaded files and information on creating a new project.The LPC2106 GCC demo application makefile is contained in the FreeRTOS/Demo/ARM7_LPC2106_GCC directory. The directory FreeRTOS/Demo/ARM7_LPC2106_GCC/Serial contains a sample interrupt driven serial port driver. The Demo ApplicationThe FreeRTOS source code download includes a fully preemptive multitasking demo application for the LPC2000 GCC RTOS port.ARM, THUMB, ROM and RAM buildsThe following batch files are provided to build the demo application. The batch files set the environment variables necessary for the relevant built before calling make.
RTOS Demo application hardware setupThe demo application includes the ComTest tasks - where one task transmits RS232 characters to another. For correct operation of this real time task a loopback connector must be fitted to the RS232 port of the prototyping board (pins 2 and 3 must be connected together on the 9Way connector).There are three "flash" real time tasks which assume LEDs are fitted to pins P0.10, P0.11 and P0.12. Omitting these LEDs will not cause the RTOS demo application to fail, but will remove some visual feedback that everything is working as expected. In addition, every character transmitted by the ComTest Tx task toggles pin P0.13. Not all the tasks update an LED so have no visible indication that they are operating correctly. Therefore a 'Check' task is created whose job it is to ensure that no errors have been detected in any of the other tasks. The on board LED is under control of the 'Check' task and is used to indicate the status of the RTOS demo application. It will toggle every three seconds if all real time tasks are executing as expected and no errors have occurred. An increase in the toggle rate to 500ms indicates that an error has occurred in at least one task. An error can be deliberately created to test this mechanism by removing the loopback connector. Please read the Demo Application section of this site for more information on the RTOS demo application tasks. Building and executing the RTOS demo application - Standalone from flashThe RTOS demo application can be executed either from flash or from RAM. This section provides instructions on creating and programming a release build into the LPC2106 flash memory. It is assumed that the GNUARM and UNXUTILS development tools are already installed correctly and included in your PATH (to make them available from a Windows DOS prompt).
To build the application:
To prepare the prototyping board for download:
To download the RTOS demo to flash:
To execute the RTOS demo application once programmed:
Building and executing the demo application - Debug via JTAGThis section provides instructions on using the debugger with the low cost WIGGLER compatible JTAG interface. A utility called OCDLibRemote is used to interface between the debugger and the JTAG WIGGLER. Again, it is assumed that the GNUARM and UNXUTILS development tools are already installed correctly and included in your PATH (to make them available from a Windows DOS prompt).
To build the application:
To prepare the prototyping board for debugging:
To setup OCDLibRemote:
Using the debugger:
Tip: The debugger works very well except for the Registers menu item - which causes an error. To view the register contents, open a console (CTRL+N), then in the console type "info registers".
Configuration and Usage DetailsWin32 GNU Development ToolsThe GNU ARM7 development tools can be obtained pre-built from a number of locations. I used the build available from http://www.gnuarm.com on a Win2K host. The binary distribution includes a convenient installation program that installs everything required. Some GNU development tool distributions require Cygwin to be installed separately which is less convenient.A GNU make compatible utility is also required. I use the UNXUTILS version. RTOS port specific configurationConfiguration items specific to this port are contained in Source/Demo/ARM7_LPC2106_GCC/FreeRTOSConfig.h. The constants defined in this file can be edited to suit your application. In particular - the definition configTICK_RATE_HZ is used to set the frequency of the RTOS tick. The supplied value of 1000Hz is useful for testing the RTOS kernel functionality but is faster than most applications require. Lowering this value will improve efficiency.Each port #defines 'BaseType_t' to equal the most efficient data type for that processor. This port defines BaseType_t to be of type long. Note that vPortEndScheduler() has not been implemented. Interrupt service routinesAn interrupt service routine that does not cause a context switch has no special requirements and can be written as normal. For example:void vASimpleISR( void ) __attribute__((interrupt("IRQ"))); void vASimpleISR( void ) { /* ISR code goes here. */ } Note: The method of forcing a context switch from within an ISR has changed since FreeRTOS V4.5.0. Unfortunately the new method requires different syntax, but is no longer dependent on the version of the compiler used, the command line switches, or the optimisation level. Changing to the method described here should therefore remove the need to make any further alterations in the future. The example here assumes that the interrupt handler is vectored to directly - that is, there is no entry code that is common to all interrupts. Some of the other FreeRTOS demo applications are configured to use a common entry point as an alternative to this method. To write an interrupt service routine that can cause a context switch:
/* Declare the wrapper function using the naked attribute.*/ void vASwitchCompatibleISR_Wrapper( void ) __attribute__ ((naked)); /* Declare the handler function as an ordinary function.*/ void vASwitchCompatibleISR_Handler( void ); /* The handler function is just an ordinary function. */ void vASwitchCompatibleISR_Handler( void ) { long lSwitchRequired = pdFALSE; /* ISR code comes here. If the ISR wakes a task then lSwitchRequired should be set to 1. */ /* If the ISR caused a task to unblock, and the priority of the unblocked task is higher than the priority of the interrupted task then the ISR should return directly into the unblocked task. portYIELD_FROM_ISR() is used for this purpose. */ if( lSwitchRequired ) { portYIELD_FROM_ISR(); } } void vASwitchCompatibleISR_Wrapper( void ) { /* Save the context of the interrupted task. */ portSAVE_CONTEXT(); Call the handler function. This must be a separate function unless you can guarantee that handling the interrupt will never use any stack space. */ vASwitchCompatibleISR_Handler(); /* Restore the context of the task that is going to execute next. This might not be the same as the originally interrupted task.*/ portRESTORE_CONTEXT(); } See vUART_ISR() defined in Demo/ARM7_LPC2106_GCC/serial/serial.c for a full example. To use a part other than an LPC2106The LPC2106 uses a standard ARM7 core with processor specific peripherals. The core real time kernel components should be portable across all ARM7 devices - but the peripheral setup and memory requirements will require consideration. Items to consider:
Switching between the pre-emptive and co-operative RTOS kernelsSet the definition configUSE_PREEMPTION within Demo/ARM7_LPC2106_GCC/FreeRTOSConfig.h to 1 to use pre-emption or 0 to use co-operative.Compiler optionsAs with all the ports, it is essential that the correct compiler options are used. The best way to ensure this is to base your application on the provided demo application makefile.Execution ContextThe RTOS scheduler executes in supervisor mode, tasks execute in system mode.NOTE! : The processor MUST be in supervisor mode when the RTOS scheduler is started (vTaskStartScheduler is called). The demo applications included in the FreeRTOS download switch to supervisor mode prior to main being called. If you are not using one of these demo application projects then ensure Supervisor mode is entered before calling vTaskStartScheduler(). Interrupt service routines always run in ARM mode. All other code will run in either ARM or THUMB mode depending on the build. It should be noted that some of the macros defined in portmacro.h can only be called from ARM mode code, and use from THUMB code will result in a compile time error. Demo/ARM7_LPC2106_GCC/boot.s configures stacks for system/user, IRQ and SWI modes only. SWI instructions are used by the real time kernel and can therefore not be used by the application code. Memory allocationSource/Portable/MemMang/heap_2.c is included in the LPC2000 demo application makefile to provide the memory allocation required by the RTOS kernel. Please refer to the Memory Management section of the API documentation for full information.Serial port driverIt should also be noted that the serial drivers are written to test some of the real time kernel features - and they are not intended to represent an optimised solution.
Notes for Linux usersI have only tested the makefile with Win32 builds of the GNUARM development tools.
