A FreeRTOS BSP for the Xilinx SDK
[RTOS Ports]


Xilinx embedded software development kit

Introduction

The Xilinx Software Development Kit (SDK) can automatically generate a board support package from a hardware definition file. The board support package provides comprehensive run time, processor and peripheral support. It is also possible for the BSP to include the FreeRTOS real time operating system.

Including FreeRTOS in the BSP presents the application writer with a pre-configured FreeRTOS environment that does not require any source files to be added manually, any callback functions to be provided by the application code, and allows FreeRTOSConfig.h to be edited within the IDE.

Instructions for creating a FreeRTOS BSP are provided below. The FreeRTOS download also includes separate and comprehensive demo applications for the Xilinx Zynq dual core ARM Cortex-A9 processor, an ARM Cortex-A53 core on the UltraScale+ MPSoC (64-bit), an ARM Cortex-R5 core on the the UltraScale+ MPSoC (32-bit), and Xilinx Microblaze soft-core processors. Those comprehensive demo applications, as provided in the the FreeRTOS download, use a standalone BSP. A standalone BSP does not itself include FreeRTOS, so FreeRTOS is instead built as part of the application. It is still important to read the documentation pages for those standalone demos, even when a FreeRTOS BSP is being used, as the pages provide information on how to use FreeRTOS on those ARM and Xilinx architectures.



Instructions

Creating a Hello World Project That Uses the FreeRTOS BSP

The board support package (BSP) repositories that ship as part of the Xilinx SDK come with a simple FreeRTOS hello world application. The hello world project is created as follows:
  1. Select "New: Application Project" from the SDK's "File" menu to bring up the new project Window, then give the project a name.

    New RTOS BSP project

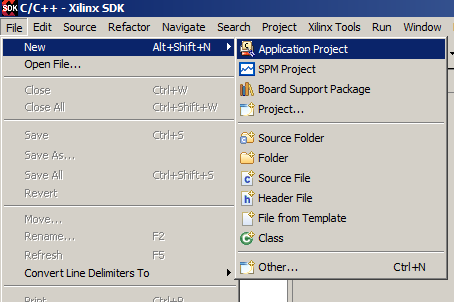

    The "New: Application Project" menu option


  2. In the new project window - first select the hardware platform in use. Pre-defined hardware platforms are provided for all the processors supported by FreeRTOS (Zynq ARM Cortex-A9, UltraScale+ ARM Cortex-A53 and ARM Cortex-A9 cores, and Microblaze). The image below shows the pre-configured ZC702 platform being used.

  3. After the hardware platform has been selected, select the processor. The image below shows the ps7_cortexa9_0 processor selected.

  4. After the processor has been selected, select the OS Platform. The image below shows freertos822 selected.

    creating the RTOS application

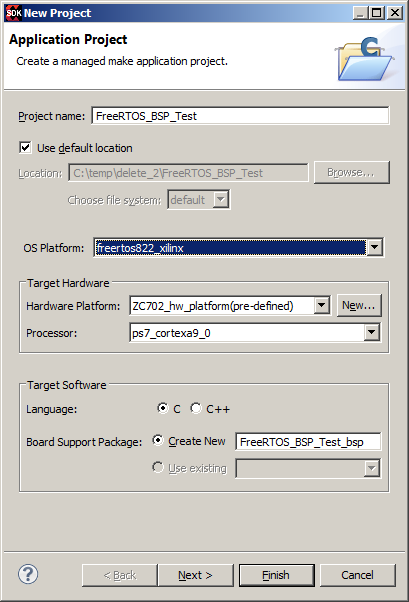

    Defining the project settings


  5. Click the "Next" button to move onto the next stage. The Templates Window will appear - select the "FreeRTOS Hello World" template, then click the "Finish" button to generate both the FreeRTOS BSP and the Hello World project.

    Selecting the RTOS hello world template

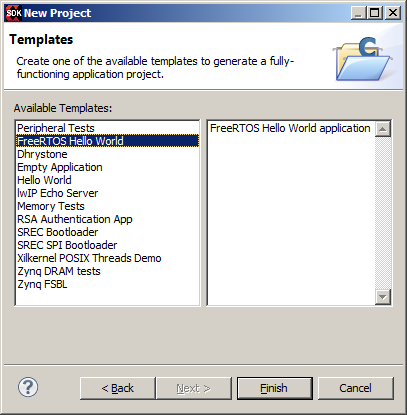

    Selecting the FreeRTOS Hello World template



Editing the FreeRTOS Configuration

A FreeRTOSConfig.h file was automatically created when the FreeRTOS BSP was generated. The values contained in the file can be viewed, and edited, using the following procedure:
  1. Select "Board Support Package Settings" from the "Xilinx Tools" menu in the SDK. The Board Support Package Settings window will appear.

  2. Select FreeRTOS in the left pane of the Board Support Package Settings window. The table in the right pane will populate with the FreeRTOSConfig.h settings.

  3. Edit the settings as necessary, then click the "Ok" button to update FreeRTOSConfig.h with the edited values, and re-build the BSP.

    Editing the RTOS settings

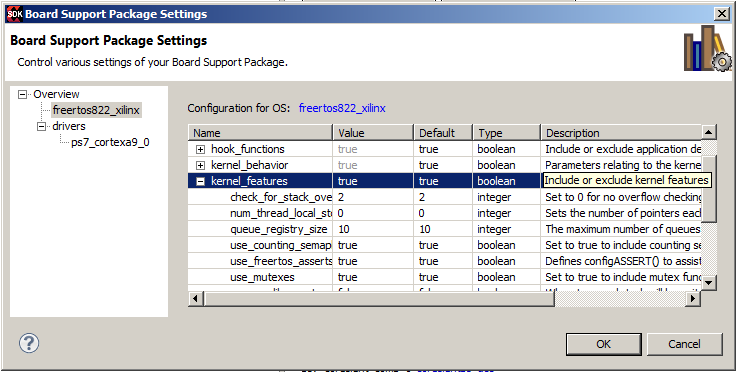

    The Board Support Package Settings window


Starting a Debug Session

It is therefore necessary to ensure the SDK launch configurations used to start a debug session resets the entire CPU, and runs the necessary initialisation scripts. A debug configuration suitable for running the Zynq demo is shown in the image below.
